A2505(XH带扣)国产替代2.50带扣胶壳/针座/端子

A2505(XH带扣)系列图档
A2505(XH带扣)规格书

产品咨询热线135-3722-1468

电话0769-85312070

邮箱james@csg-china.com

请使用微信或企业微信扫码联系

详细信息

规格：

额定电流: 2.5A AC, DC

额定电压: 250V DC

温度范围: -25 deg C ~ +105 deg C

接触电阻: 20m Omega Max.

绝缘电阻: 1000M Omega Min.

耐压: 1000V AC/minute

胶壳材质：PA66 94V-0 白色

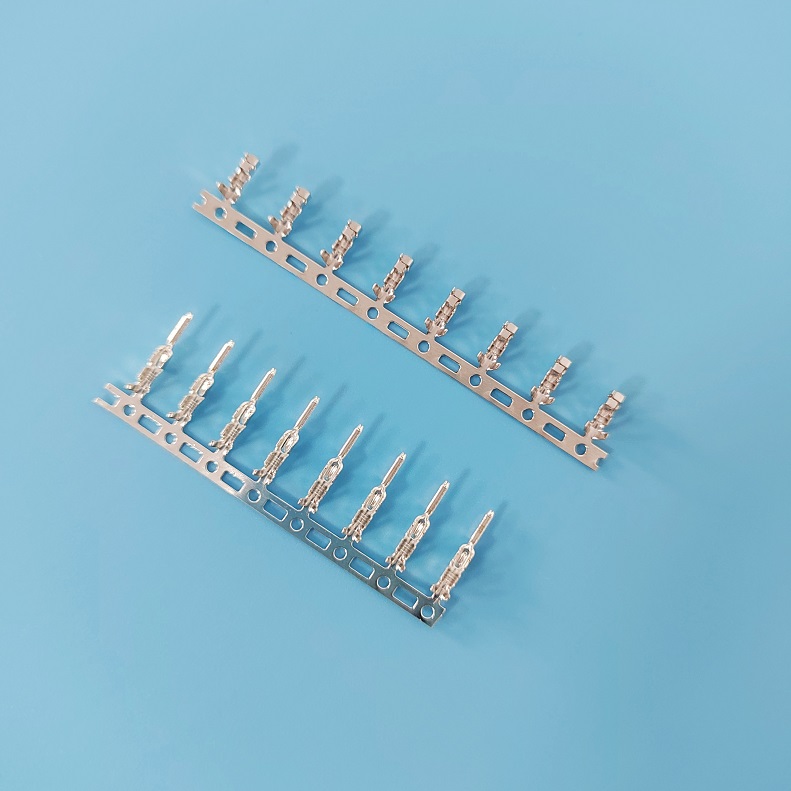

端子材质：磷铜镀锡

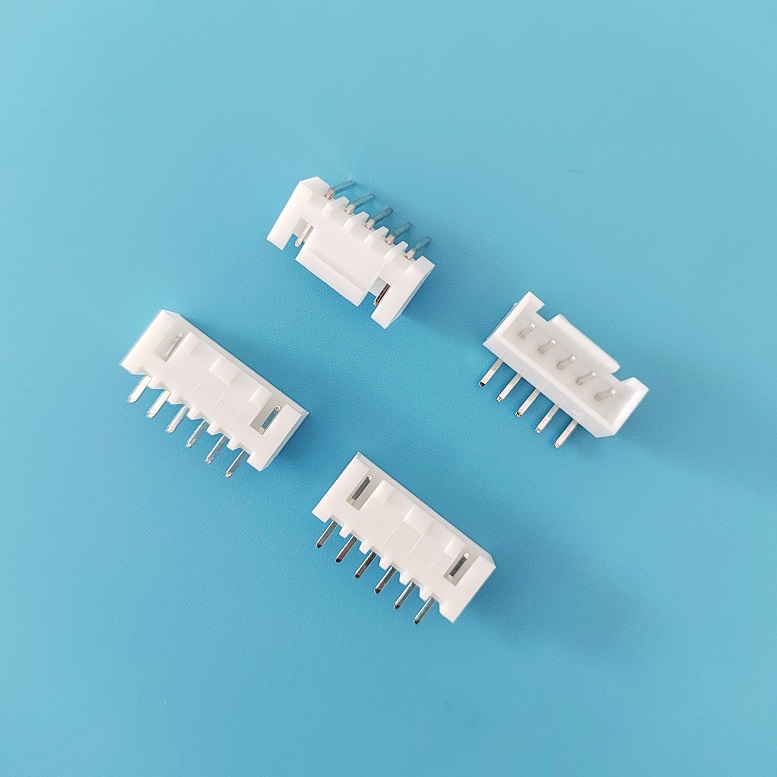

DIP针座主体材质：PA66 94V-0 白色

针座PIN针材质：黄铜镀锡

SMT针座主体材质：LCP 94V-0 灰色

针座PIN针材质：黄铜镀锡

接地片材质：黄铜镀锡
