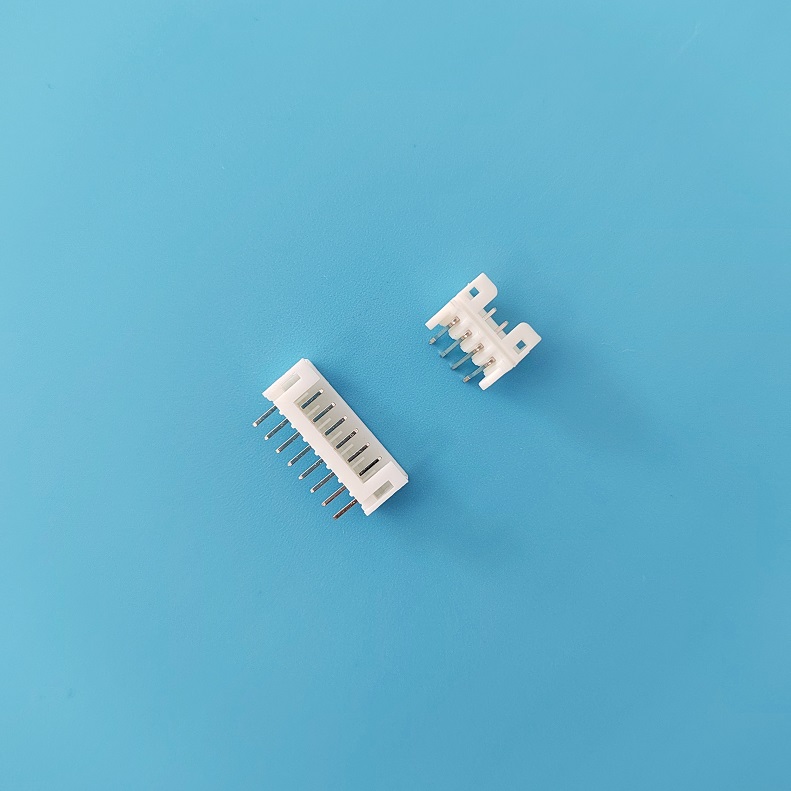

A2001(PH)国产替代PH 2.00胶壳端子针座现货

A2001(PH)系列图档
A2001(PH)规格书

产品咨询热线135-3722-1468

电话0769-85312070

邮箱james@csg-china.com

请使用微信或企业微信扫码联系

详细信息

规格：

额定电流: 2A AC, DC

额定电压: 125V DC

温度范围: -40 deg C ~ +105 deg C

接触电阻: 20m Omega Max.

绝缘电阻: 1000M Omega Min.

耐压: 800V AC/minute

胶壳材质：PA66 94V-0 白色/黑色

端子材质：磷铜镀锡

DIP针座主体材质：PA66 94V-0 白色

SMT针座主体材质：LCP 94V-0 自然色

针座PIN针材质：黄铜镀锡

针座接地片材质：黄铜镀锡

返回上一页

关键词：PHR-2,PHR-3,PHR-4,PHR-5,PHR-6,PHR-8,PHR-10,SPH-002T-P0.5L,B2B-PH-K-S,B4B-PH-K-S,B5B-PH-K-S,B6B-PH-K-S,B8B-PH-K-S,S2B-PH-K-S,S3B-PH-K-S,S6B-PH-SM-TB,PH胶壳,PH母胶壳,PH端子,PH公端子,PH线束,2.0空接

A2001(PH)国产替代PH 2.00胶壳端子针座现货
