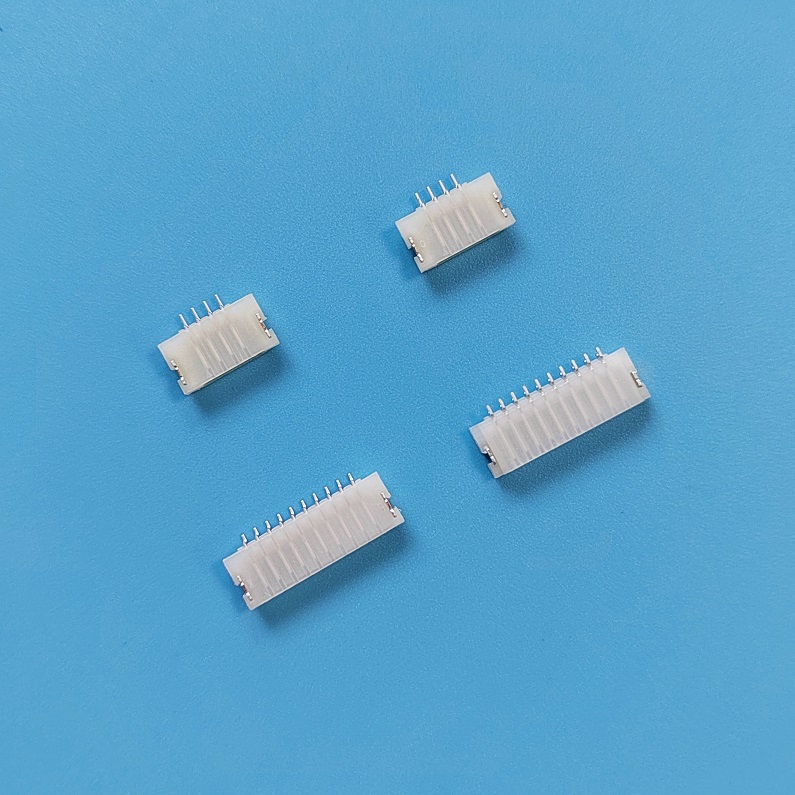

A1008(SHL/SHLD)国产替代SHL 1.00mm/SHLD端子胶壳

A1008(SHL/SHLD)系列图档
A1008(SHL/SHLD)规格书

产品咨询热线135-3722-1468

电话0769-85312070

邮箱james@csg-china.com

请使用微信或企业微信扫码联系

详细信息

规格：

额定电流: 1A AC, DC

额定电压: 50V DC

温度范围: -40 deg C ~ +105 deg C

接触电阻: 20m Omega Max.

绝缘电阻: 100M Omega Min.

耐压: 500V AC/minute

胶壳材质：PA66 94V-0 白色

端子材质：磷铜镀锡/金

SMT针座主体材质：PA6T/LCP-94V-0 自然色

针座PIN针材质：磷铜锡/镀金

针座接地片材质：黄铜镀锡
